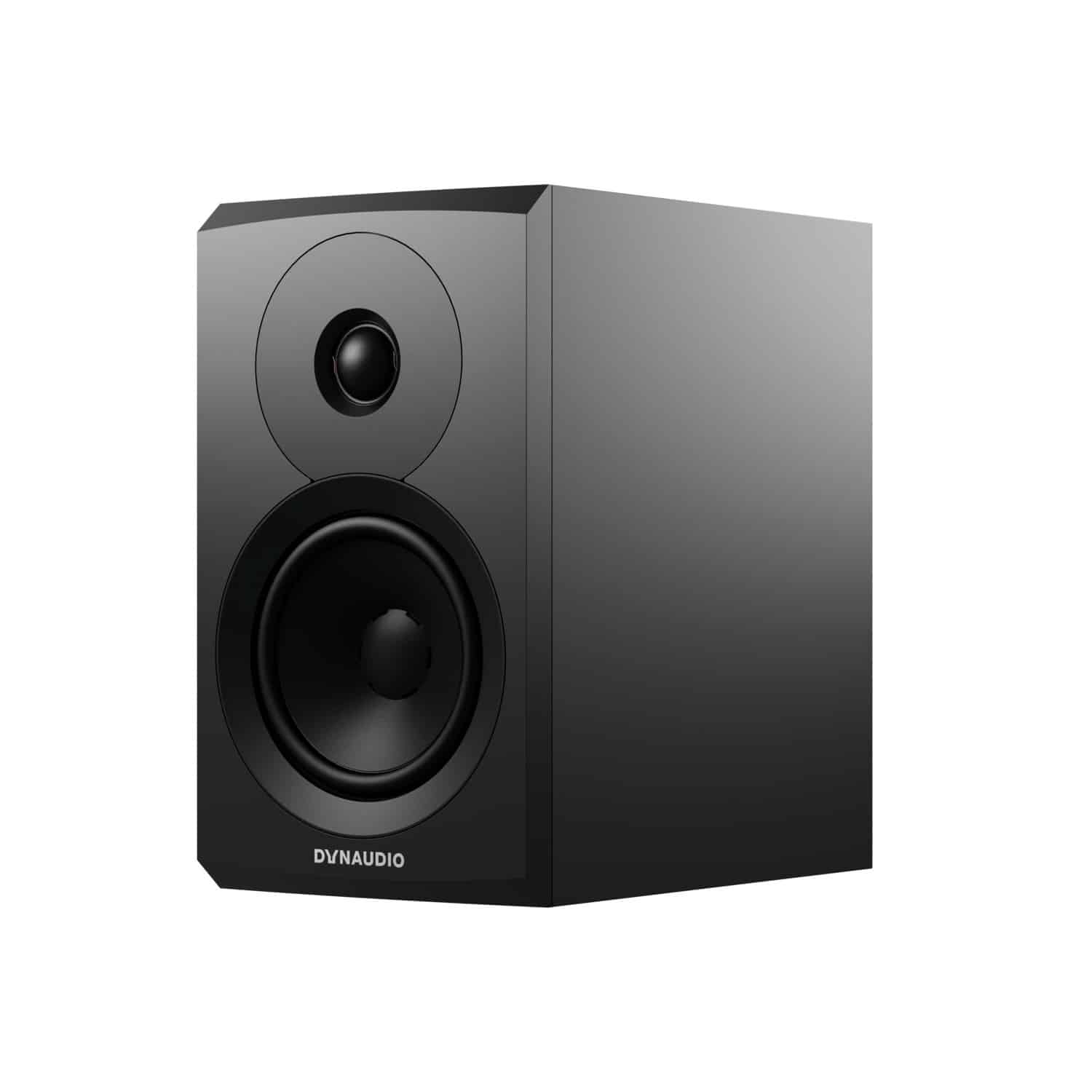

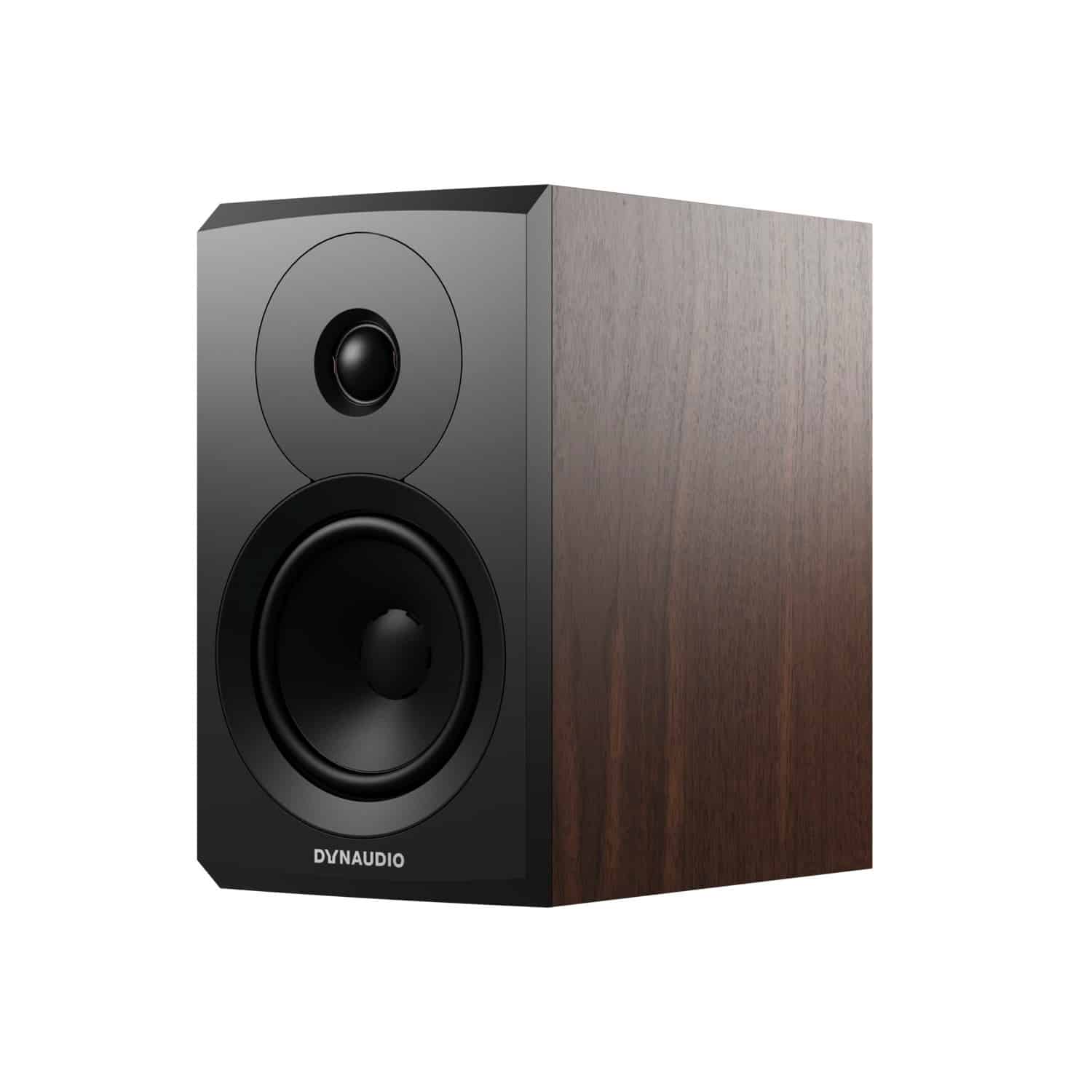

Dynaudio Emit 10

Dynaudio Emit 10 - Kompakthøjtaler med reference teknologi

Emit 10 er en 2-vejs kompakthøjtaler, der bruger teknologi, der er direkte afledt af Dynaudio's ultra-high-end Confidence, Contour i og Evoke serier. Det er den ideelle model til mindre rum og satellitkanaler i et hjemmebiografsystem. Emit 10 er designet og konstrueret hos Dynaudio Labs i Danmark, hvor de er blevet udviklet og tunet af de samme hoveder, der er bag Dynaudio's prisvindende high-end serier. Helt ned til mindste detalje.

I højtaleren finder du en 14 cm MSP (Magnesium Silicate Polymer) mellemtone/basenhed. MSP er et materiale, Dynaudio selv har udviklet og har brugt i årtier. MSP giver præcis den rigtige kombination af lethed, stivhed og dæmpning. Resultatet er, at du får en superfin kontrol helt uden tab af kraft, og det er afgørende, når en enhed skal gengive både lav- og mellemtonefrekvenser.

Emit 10 key features

• Designed and engineered in Denmark
  The entire Emit family has been put through its paces in our world-class Jupiter measuring facility at Dynaudio Labs. We treat it exactly the same as we do every other speaker in our range: no stone left unturned.
• Cerotar tweeter
  Emit uses the highly regarded Cerotar tweeter from our Evoke series. It’s a high-quality high-frequency driver inspired by our top-end Confidence and Heritage Special speakers, and includes the innovative resonance-defeating Hexis inner dome.
• Clean and simple
  Each speaker in the Emit range is designed to fit with modern lifestyles and interiors. Clean lines, simple finishes and minimalist Scandinavian looks – whether you’re listening in stereo or have a full multi-channel system.

Legendary engineering

Emit 10’s mid/bass driver is derived from the Esotec+ in the successful Evoke series.

Its double magnet system gives better movement control and sensitivity, which means you’ll hear improved frequency response and dynamics at lower frequencies, while retaining crystal-clear midrange performance. That means you’ll hear what you want from a powerful rhythm section, plus guitars, vocals and more – all without distortion at louder volumes.

You’ll notice that the dust-cap isn’t simply glued on. It’s part of the playing surface of the cone. The little dashed line around its edge – the balance rib structure – is bonded directly to the 38mm voice-coil behind it. It’s an incredibly strong connection with the motor, which means more of the coil’s motion energy is transferred to the diaphragm.

Behind the cone

The voice-coil itself is made of copper-clad aluminium wire. Aluminium is light, which gives the driver a fleetness of foot you might not find elsewhere, while the copper coating increases conductivity for more power. It’s a winning combination for detail and punch.

A high-quality double ferrite magnet system provides the power. It’s a stacked design to keep it compact, but it serves another purpose: using two magnets means our engineers were able to control the magnetic flux, directing it back to the voice-coil, where it’s needed the most. (We can’t break the laws of physics, but we do rather like to bend them a bit.)

High-quality Cerotar tweeter

The Cerotar tweeter is exactly what you’ll find in Evoke. It’s based on the one we’ve used in our award-winning Esotar Forty anniversary tweeter and the incredible Esotar3, which you’ll hear in Heritage Special and Confidence.

It’s a 28mm fabric soft-dome unit with our special DSR (Dynaudio Secret Recipe) coating. Why fabric soft-dome tweeters? They convey all the detail and openness you could wish to hear from your recordings without subjecting you to unwanted fatigue over longer listening sessions. These are speakers you can (and, we hope, will) listen to late into the night.

Behind the dome sits our much-talked-about Hexis device. It’s an ingenious dimpled inner dome that sits directly behind the playing surface and shapes airflow to optimise the frequency response and eliminate unwanted resonances. That means the diaphragm can move more precisely, so you’ll hear even more detail. It’s driven by a strontium carbonate Ferrite+ ceramic magnet system for more sensitivity, improved clarity and a natural, dynamic response.
